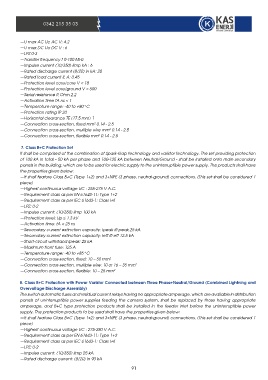

0342 215 35 03 ŞARTNAME - Specification

—U max AC Uc AC V: 4.2
—U max DC Uc DC V : 6
—LPZ 0-3
—Transfer frequency f 0-100 MHz
—Impulse current (10/350) Iimp kA : 6
—Rated discharge current (8/20) In kA: 20
—Rated load current IL A: 0.45
—Protection level core/core V < 18
—Protection level core/ground V < 500
—Serial resistance R Ohm 2.2
—Activation time tA ns < 1
—Temperature range: -40 to +80 °C
—Protection rating IP 20
—Horizontal clearance TE (17.5 mm) 1
—Connection cross-section, fixed mm2 0.14 - 2.5
—Connection cross-section, multiple wire mm2 0.14 - 2.5
—Connection cross-section, flexible mm2 0.14 - 2.5

7. Class B+C Protection Set
It shall be comprised of the combination of Spark-Gap technology and varistor technology. The set providing protection
of 100 kA in total - 50 kA per phase and 100-125 kA between Neutral/Ground - shall be installed onto main secondary
panels in the building, which are to be used for electric supply to the uninterruptible power supply. The products shall have
the properties given below:
—It shall feature Class B+C (Type 1+2) and 3+NPE (3 phase, neutral-ground) connections. (This set shall be considered 1
piece)
—Highest continuous voltage UC : 255-275 V A.C.
—Requirement class as per EN 61643-11: Type 1+2
—Requirement class as per IEC 61643-1: Class I+II
—LPZ: 0-2
—Impulse current: (10/350) Iimp 100 kA
—Protection level: Up ? 1.3 kV
—Activation time: tA < 25 ns
—Secondary current extinction capacity: Ipeak Ifi peak 25 kA
—Secondary current extinction capacity: Ieff Ifi eff 12.5 kA
—Short-circuit withstand Ipeak: 25 kA
—Maximum front fuse: 125 A
—Temperature range: -40 to +85 °C
—Connection cross-section, fixed: 10 – 50 mm2
—Connection cross-section, multiple wire: 10 or 16 – 35 mm2
—Connection cross-section, flexible: 10 – 25 mm2

8. Class B+C Protection with Power Varistor Connected between Three Phase+Neutral/Ground (Combined Lightning and

Overvoltage Discharge Assembly)
The switch automatic fuses and residual current relays having no appropriate amperage, which are available in distribution
panels of uninterruptible power supplies feeding the camera system, shall be replaced by those having appropriate
amperage, and B+C type protection products shall be installed in the feeder inlet before the uninterruptible power
supply. The protection products to be used shall have the properties given below:
—It shall feature Class B+C (Type 1+2) and 3+NPE (3 phase, neutral-ground) connections. (This set shall be considered 1
piece)
—Highest continuous voltage UC : 275-280 V A.C.
—Requirement class as per EN 61643-11: Type 1+2
—Requirement class as per IEC 61643-1: Class I+II
—LPZ: 0-2
—Impulse current: (10/350) Iimp 25 kA
—Rated discharge current: (8/20) In 90 kA
