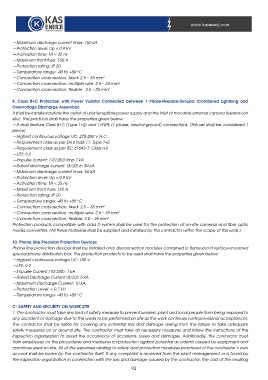

ŞARTNAME - Specification www.kasenerji.com

—Maximum discharge current Imax: 150 kA
—Protection level: Up < 0,9 kV
—Activation time: tA < 25 ns
—Maximum front fuse: 160 A
—Protection rating: IP 20
—Temperature range: -40 to +80 °C
—Connection cross-section, fixed: 2.5 – 35 mm2
—Connection cross-section, multiple wire: 2.5 – 35 mm2
—Connection cross-section, flexible: 2.5 – 25 mm2

9. Class B+C Protection with Power Varistor Connected between 1 Phase+Neutral/Ground (Combined Lightning and

Overvoltage Discharge Assembly)
It shall be installed before the outlet of uninterruptible power supply and the inlet of movable external camera feeders (on
site). The products shall have the properties given below:
—It shall feature Class B+C (Type 1+2) and 1+NPE (1 phase, neutral-ground) connections. (This set shall be considered 1
piece)
—Highest continuous voltage UC: 275-280 V A.C.
—Requirement class as per EN 61643-11: Type 1+2
—Requirement class as per IEC 61643-1: Class I+II
—LPZ: 0-2
—Impulse current: (10/350) Iimp 7 kA
—Rated discharge current: (8/20) In 30 kA
—Maximum discharge current Imax: 50 kA
—Protection level: Up < 0,9 kV
—Activation time: tA < 25 ns
—Maximum front fuse: 160 A
—Protection rating: IP 20
—Temperature range: -40 to +80 °C
—Connection cross-section, fixed: 2.5 – 35 mm2
—Connection cross-section, multiple wire: 2.5 – 35 mm2
—Connection cross-section, flexible: 2.5 – 25 mm2
Protection products compatible with class D system shall be used for the protection of on-site cameras and fiber optic
media converters. (All these materials shall be supplied and installed by the contractor within the scope of this work.)

10. Phone Line Precision Protection Devices
Phone line protection devices shall be installed onto disconnection modules contained in flame-proof surface-mounted
special phone distribution box. The protection products to be used shall have the properties given below:
—Highest continuous voltage UC: 180 V
—LPZ: 0-2
—Impulse Current (10/350): 1 kA
—Rated Discharge Current (8/20): 5 kA
—Maximum Discharge Current: 10 kA
—Protection Level: < 0.7 kV
—Temperature range: -40 to +80 °C

C- SAFETY AND SECURITY ON WORK SITE
1. The contractor must take any kind of safety measure to prevent workers, plant and local people from being exposed to
any accident or damage due to the works to be performed on site as the work continues (until provisional acceptance).
The contractor shall be liable for covering any potential loss and damage arising from the failure to take adequate
safety measures on or around site. The contractor must take all necessary measures and follow the instructions of the
inspection organization to avoid the occurrence of accidents, losses and damages. Additionally, the contractor must
train employees on the procedures and measures for protection against potential accidents caused by equipment and
machines used on site. All of the expenses relating to safety and protection measures practiced of the contractor’s own
accord shall be borne by the contractor itself. If any complaint is received from the plant management or is found by
the inspection organization in connection with the loss and damage caused by the contractor, the cost of the resulting
